Product Details:
Payment & Shipping Terms:
|
| Engine: | Honda Gasoline Engine | Type: | Hydraulic Pump |
|---|---|---|---|
| Ueses: | Provide Power For Cutting Tools, Hydraulic Compressor | Weight(kg): | 60 |
| Tank Volume(L): | 8 | Rated Flow(L/min): | 1.4 |
| Rotate Speed(r/min): | 1500 | Rated Pressure(Mpa): | 80 |
| High Light: | electrical wire pulling tools,wire rope tensioner tool |
||

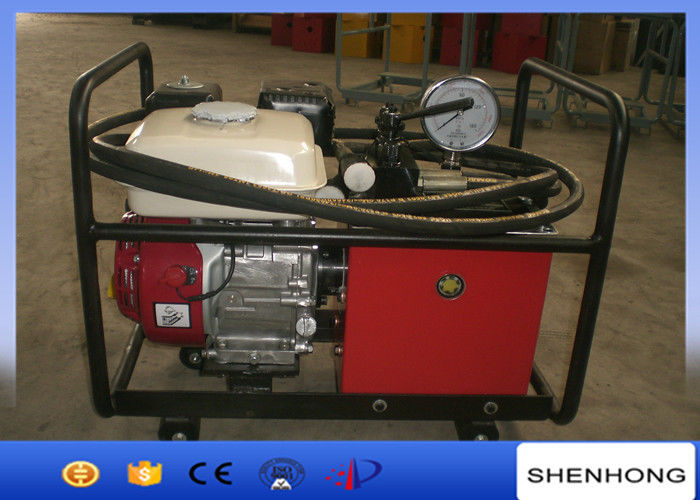

Honda Gasoline Engine Gas Powered Hydraulic Pump For Onerhead Line Construction Machinery
Application
Honda Gasoline Hydraulic Pump is used to provide power for the cutting tool,the hydraulic compressor,punching machine and other construction machinery,which is operated in the wild field in electric power,railway,rescue,construction and other industries.
Features
1. Easy to operate and high safety
2. Precise Machining Technique
3. Long Life
4. Broader Applicable Scope
5. Good Quality and Less Malfunction
Technical Data
| Model Type |
Rated Pressure(Mpa) |
Rotate Speed(r/min) |
Rated Flow(L/min) |
Tank Volume(L) |
Weight(kg) |
| JYB-80 | 80 | 1500 | 1.4 | 8 | 60 |
Oil Hose standard length: 2.5 m/pc * 2pcs
Note:
Length of oil hose can be made as per your requirement.
Hydraulic compression head HP-100W:
Hydraulic compression head HP-200W:
Hydraulic compression head HJC125:
Hydraulic compression head HJC200:
Max output:200 tons;
Rated working pressure:80MPa;
Stroke: 25mm;
Weight:86Kg
