| Wheel: | Aluminum Or Nylon | Function: | Cable Stringing |
|---|---|---|---|
| Rated Load(KN): | 10 | Surface Treatment: | Galvanization |
| Wheel Diameter: | 140mm | Wheel Width: | 160mm |
| High Light: | Nylon Sheave Cable Pulling Pulley,Cable Stringing Pulling Pulley,10KN Cable Pulling Pulley |
||

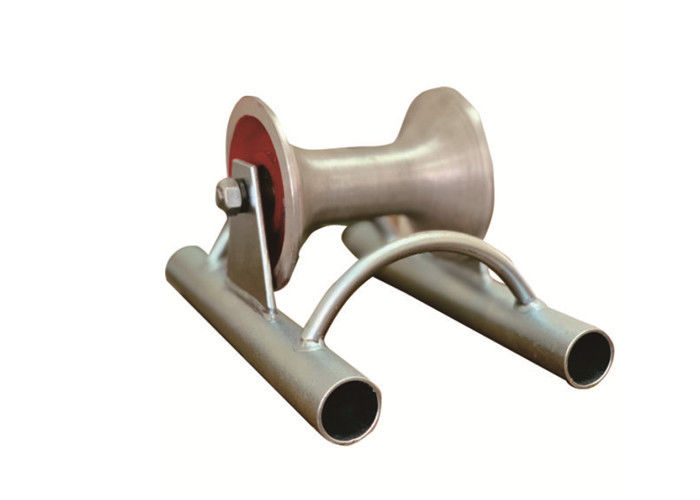

High strength Aluminum Alloy and Nylon Sheave Cable Pulling Pulley
Cable rollers should always be used when pulling cables.Straight cable runs are pulled in using straight cable rollers suitably placed in the cable trench to prevent the cable being dragged on the trench bottom or in mud-cable roller spacing is dependent on cable type being laid and the cable pulling tension along the route. Leading cable rollers are used to support the cable over the entire drum width immediately before being pulled into the trench. Cable laying applications with bends in the route require skid plates of a radius greater than the cables minimum dynamic bending.
Apply to cable diameter is less than 200mm,Nylon sheaves are represented by N letters.The rest are aluminum sheaves.
Product Table
| Item Number | Model | Rated Load (kN) | Diameter of Applicable Cable (mm) | Weight (kg) |
| 21191 | SHL1G | 5 | Φ150 | 5.1 |
| 21192 | SHL1GN | 5 | 3.3 | |
| 21193 | SHL2GN | 5 | Φ160 | 5.7 |
| 21194 | SHL3GN | 5 | Φ200 | 8 |
| Item Number | Model | Rated Load (kN) | Diameter of Applicable Cable (mm) | Weight (kg) |
| 21181 | SHL1B | 5 | Φ150 | 5.5 |
| 21182 | SHL1BN | 5 | 3.7 | |
| 21183 | SHL2BN | 5 | Φ160 | 5.5 |
| 21184 | SHL3BN | 5 | Φ200 | 8.0 |
