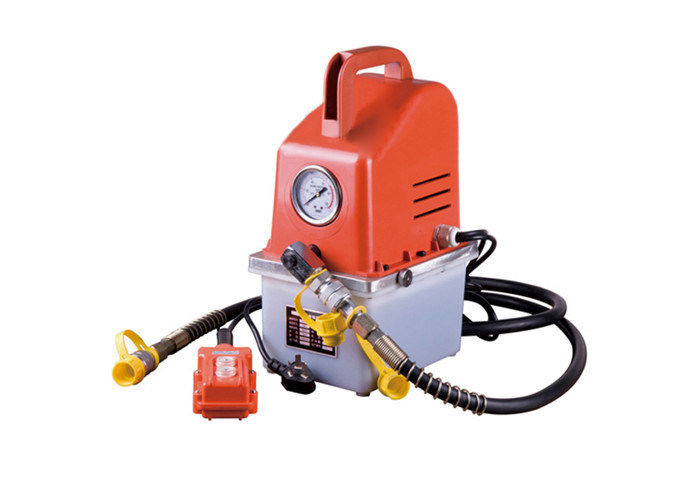

750W 220v Electric Powered Hydraulic Pump Super Pressure Remote Control

Good quality Overhead Line Construction Tools for sales
Good quality Overhead Line Construction Tools for sales
The Tools for underground cable pulling project works very well.I am going to introduce to other companies in local.

—— Mr. Ara Minasian

I would like to tell you that I have already begun to distribute the catalog on the Vietnam companies to transfer electricity and all the companies

—— Hung Do Bui

We will try very hard to build the market for your products in Kenya.

—— Mr. John Gachagua

I'm Online Chat Now

750W 220v Electric Powered Hydraulic Pump Super Pressure Remote Control

China 750W 220v Electric Powered Hydraulic Pump Super Pressure Remote Control supplier
750W 220v Electric Powered Hydraulic Pump Super Pressure Remote Control supplier 750W 220v Electric Powered Hydraulic Pump Super Pressure Remote Control supplier

Large Image :  750W 220v Electric Powered Hydraulic Pump Super Pressure Remote Control

Product Details:

Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: CTE-25AS

Payment & Shipping Terms:

Minimum Order Quantity: 1sets
Price: negotiation
Packaging Details: Standard export wooden case
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T
Supply Ability: 500sets per month
Contact Now
Detailed Product Description
Type: Electric Hydraulic Pump Accessories: PT3/8" Quick Coupler
Oil Reservoir: 4000cc Weight: 29kg
Size: 350*270*490mm Pressure: 700bar



750W 220v Electric Powered Hydraulic Pump Super Pressure Remote Control





CTE-25AG 700bar 10000 PSI Two Speed Portable Small Single Acting Electric Hydraulic Oil Pump

Pressure Gauge can read correct working pressure to prevent damage caused by overloading

Fuse: to protect the motor and machine while power overloading

Memory: the internal is equipped with a set memory chip to record the using time and provide the reference

For products maintenance

The oil must be changed at least once a year and please use the R-32 super cycler oil to avoid pumpdamage



Tools Introduction


Electric Hydraulic Pump CTE-25AS is a single-acting,double speed pump.It is used to provide pressurized oil to compatible tools: Cylinder, Crimping Head, Cutting Head, Busbar punching bending cutting tools, pipe bender etc. where 700 Bar (1000PSI) working pressure is required. Ram advancement and retraction are controlled by solenoid valve equipped inside



Tools Specification


1. Rated Working Pressure: 700Bar (10000PSI)

2. Single-Acting Double Speed

3. Oil Reservoir: 4000CC

4. Oil Delivery Speed: Low pressure 2.6cc/stroke High pressure: 0.32cc/stroke

5. Working Pressure: Low pressure 0-20bar High Pressure: 20-700bar

6. Weight: 29kg

7. Size:350*270*490mm

Model CTE-25AS
Flow Rate Low Pressure:2.6L/Min High Pressure:0.32L/Min
Oil Capacity 2.7L
Output 1300W
Voltage 220V/50Hz
Size 230x160x390(mm)
Weight 16

750W 220v Electric Powered Hydraulic Pump Super Pressure Remote Control

Tools Feature

1. Double Speed: For fast oil delivery

2. Single-Acting: Works with single acting remote control tool

3. Solenoid Valve euqipped: easily control ram advancment and retraction

4. PT3/8" Quick coupler: For quick connection with compatible tool



Primary Competitive Advantages:

1), Our company has several years’s experience in producing kinds of pumps, we have the self-operated importing and exporting rights.

2), All products are approved by ISO9001:2008 and CE.

3),We can produce the hydraulic tools according to our customer’s requirement.

4), We insist to popularize our brand “Zhenda” to our customers , and welcome to become our sales agency ,

We’ll give our customer the special prices once the customer become our approved agency
