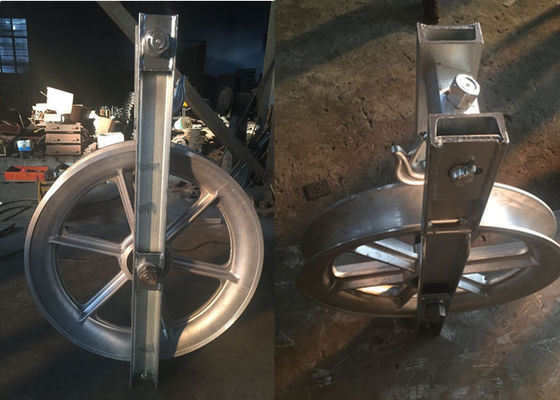

2 Ton Capacity Locking Rope Pulley , Wire Pulling Pulley With Aluminum Sheave

China 2 Ton Capacity Locking Rope Pulley , Wire Pulling Pulley With Aluminum Sheave supplier
2 Ton Capacity Locking Rope Pulley , Wire Pulling Pulley With Aluminum Sheave supplier 2 Ton Capacity Locking Rope Pulley , Wire Pulling Pulley With Aluminum Sheave supplier

Large Image :  2 Ton Capacity Locking Rope Pulley , Wire Pulling Pulley With Aluminum Sheave

Product Details:

Place of Origin: Jiangsu,China
Brand Name: shenhong
Certification: CE,BV,ISO
Model Number: SH508

Payment & Shipping Terms:

Minimum Order Quantity: 1 pieces
Price: negotiation
Packaging Details: cartoon
Delivery Time: ten days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Piece/Pieces per Month
Contact Now
Detailed Product Description
Application: Line Construction Used: Pulling
Number Of Wheel: 1 Rated Load: 20KN
Weight: 13kg Material: Aluminum Alloy
Diameter: 408mm Package: Cartoon

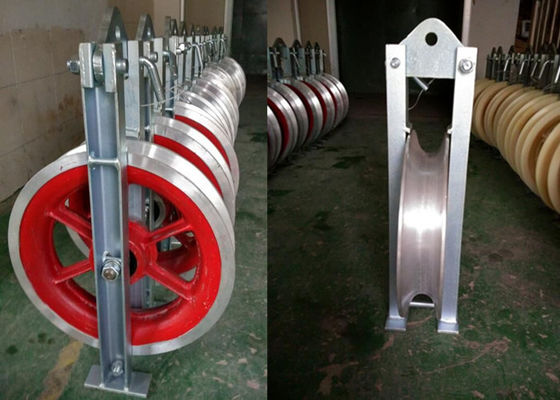

2 Ton Capacity 16inch Single Sheave Cable Stringing Pulley Cable Roller with Aluminum Sheave



Stringing pulley block overview

Cable pulley block is often laid in open trenched where the road and ground conditions result in the cable route having a number of curves. With the cable's own weight and the high tensions involved the cable cannot be fed cleanly.
The pulley block from SINTA is made of aluminium or nylon, frame is high grade galvanized steel or copper. The sturdy and robust steel frames are completely galvanized and guarantee a long working life even under extreme conditions.



Stringing pulley block features

1. To put aluminum wire, steel core aluminum strandes wire, insulated wire delay in pole and tower
2. Cable roller wheel groove can be through a lamp pipe, aluminum casing, connector etc.
3. The material is divided into aluminum alloy and MC nylon.
4. Pulley pendant divided into joint plate and hook type.



Product: stringing pulley blocks; stringing blocks.

Usage:Protect the cable and conductor from fricting when they are laying.They can save time and effort.

Description:

a. We manufacture a lot of models for different uses in the overhead transmission line construction.

b. They have are used to support conductors,OPGW,ADSS, communicatio lines.

c. The sheave of the pulley blocks are made from higth strength MC nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.The lateral ones are mounted on ball bearings.

Remarks:All kinds of pulley blocks can be manufactured according to the customers's requirements.

If any interested,please feel free to contact with us for more information,and we will try our best to comply with your requirements



Data sheet

Model Rated load (KN) Applicable Conductor (mm²) Weight (kg) Features
SHD120×30 5 LGJ25-70 1.8 Aluminum sheave
SHD160×40 10 LGJ95-120 3.1
SHD200×40 15 LGJ150-240 4
SHD200×60 15 LGJ150-240 4.6
SHD250×40 20 LGJ150-240 4.6
SHD250×60 20 LGJ300-400 6
SHD270×60 20 LGJ300-400 7
SHD320×60 30 LGJ300-400 9.5
SHD400×80 30 LGJ400-500 15

Remarks:

1. The product is classified as hook style, clevis, etc. it must be explained clearly in writing when ordering, exceptional specification can be customized.

2. The meading of model is outside diameter of sheave × with of sheave (mm)

2 Ton Capacity Locking Rope Pulley , Wire Pulling Pulley With Aluminum Sheave
