Galvanized Steel Frame Cable Duct Rod Fiberglass Push Pull FRP Fiberglass Duct Rod

Galvanized Steel Frame Cable Duct Rod Fiberglass Push Pull FRP Fiberglass Duct Rod
Galvanized Steel Frame Cable Duct Rod Fiberglass Push Pull FRP Fiberglass Duct Rod Galvanized Steel Frame Cable Duct Rod Fiberglass Push Pull FRP Fiberglass Duct Rod

Large Image :  Galvanized Steel Frame Cable Duct Rod Fiberglass Push Pull FRP Fiberglass Duct Rod Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: BCD
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Carton
Delivery Time: 10 workdays after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs/day
Detailed Product Description
Product Name: Galvanized Steel Frame Cable Duct Rod Diameter: 4-16mm
Length: 50-500M Frame Material: Powder Coating Or Hot-dipped Galvanized
Application: Cable Laying, Drain Cleaning Item: Fiber Optic Equipment
High Light:

cable installation tools

,

wire installation tools

Galvanized Steel Frame Cable Duct Rod Fiberglass Push Pull FRP Fiberglass Duct Rod


Galvanized Steel Frame Cable Duct Rod Fiberglass Push Pull FRP Fiberglass Duct Rod 0
Introduction
Fiberglass duct rod or duct rodders and commonly called python rod by its nature passing through under ground ducts by ups, down negotiating the duct curvature thus very convinient to pull the cables , wires inside the duct , also it can be used to locate the duct block or damage portion identifications . its has high safety aspects to use underground applicartions because of its non conductivity of electricity, sets a major safety to site workers .

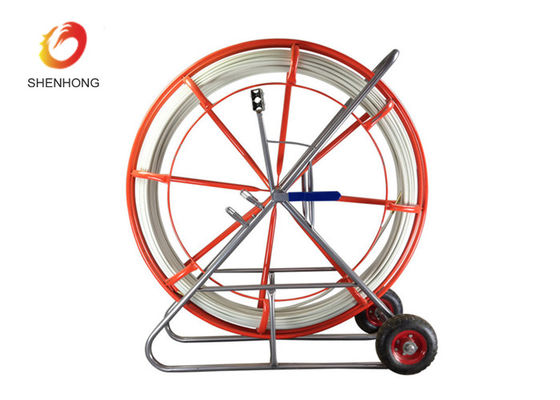

It has been built with rigid sturdy steel tubular fabrication for easy usage at site and can be self coiled in the tubular frame and easily roll like trolley on ground by its wheels fitted at bottom .
The ducts rodders normmaly comes in various diameters from 4.5 mm to 16 mm as per ground applications. normally 10 mm dia FRP rodders used for pulling, cleaning and locating blocks in Fiber optic Cable network applications .

Galvanized Steel Frame Cable Duct Rod Fiberglass Push Pull FRP Fiberglass Duct Rod 1 Galvanized Steel Frame Cable Duct Rod Fiberglass Push Pull FRP Fiberglass Duct Rod 2

Mini Duct Rodder without Wheels                                         Fiberglass Duct Rodder with Wheels

Rod Dia.: 4.5mm, 6mm.            Rod Dia.: 8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm.

Specification
Galvanized Steel Frame Cable Duct Rod Fiberglass Push Pull FRP Fiberglass Duct Rod 3




Specification
Rod Diameter (mm)
Φ4.5,Φ6,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16
Rod Length (m)
30~500
Frame Spec.(cm)
50*40*15, 67*55*16, 76*66*16, 95*90*48, 105*100*48, 130*120*48, 150*140*48
Color
Blue, yellow, red, white etc



Material
Rod Inner
Extruded by fiber glass and high strength resin at high temperature
Rod Outer
High Density polyethylene coating
Frame
Steel with high-temperature Spray coating
Wheel
Rubber
Drawing head
Copper


Physical Characters
Density
55g/m
Working temperature
-40°C to +80°C
Breaking tension
100kg
Bending Radius
295mm
Technology
Pultrusion

Packaging
Inside
Plastic woven strip wind around the frame
Outside
Carton, Wooden Pallet or Wooden Crate


Other Tips:

1) Our common color: yellow and white, if you need other color, we can custom.
2) The Frame surface treatment used hot galvanizing and coating, to prevent rust .
3) Accessory and repair kit included


Please tell us the following information in your enquiry:
1. Diameter of duct rodder (mm)
2. Length of pulling rod
3. The Quantity of duct rodder
