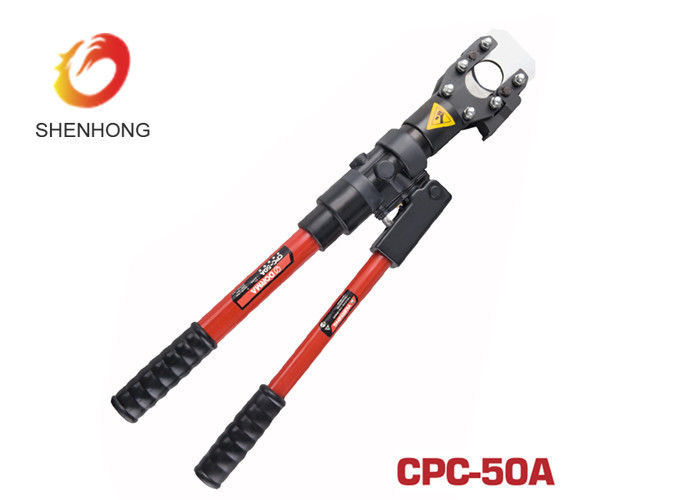

7T Manual Hydraulic Cable Cutter with Max 50m ACSR Conductor Cutting Capacity

I'm Online Chat Now
China SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD certification
China SUZHOU SHENHONG IMPORT AND EXPORT CO.,LTD certification
The Tools for underground cable pulling project works very well.I am going to introduce to other companies in local.

—— Mr. Ara Minasian

I would like to tell you that I have already begun to distribute the catalog on the Vietnam companies to transfer electricity and all the companies

—— Hung Do Bui

We will try very hard to build the market for your products in Kenya.

—— Mr. John Gachagua

7T Manual Hydraulic Cable Cutter with Max 50m ACSR Conductor Cutting Capacity

7T Manual Hydraulic Cable Cutter with Max 50m ACSR Conductor Cutting Capacity
7T Manual Hydraulic Cable Cutter with Max 50m ACSR Conductor Cutting Capacity 7T Manual Hydraulic Cable Cutter with Max 50m ACSR Conductor Cutting Capacity

Large Image :  7T Manual Hydraulic Cable Cutter with Max 50m ACSR Conductor Cutting Capacity Get Best Price

Product Details:
Place of Origin: Jiangsu, China
Brand Name: SHENHONG
Certification: ISO
Model Number: CPC-50A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: cartons
Delivery Time: 7 days after payment
Payment Terms: L/C, T/T
Supply Ability: 1000pcs per month
Detailed Product Description
Type: Hydraulic Cable Cutter Size: 755x130x230mm
Weight(kg): 6.0kg Cutting Range: Cu/Al Cable Φ50mm
Output: 7T Package: Steel Case
High Light:

cable installation tools

,

cable installation equipment

7T Manual Hydraulic Cable Cutter with Max 50m ACSR conductor Cutting Capacity



Feature

  1. Hand operated hydraulic tools specifically designed to cut copper,aluminum and tel cables having a max overall diameter from 40-85mm.
  2. The tool features a double speed action:a fast advancing speed for rapid approach of the blades to the cable and a slower more powerfull speed for cutting
  3. The blades are manufactured from high strength special steel,heat treated to ensure a long service life.
  4. The head can be easily opened to allow the cutting of running cables.

Data Sheet

Cuttting force 70KN
Cutting range Steel wire  Ø30mm
  ACSR Ø50mm
  Al/Cu cable Ø50mm
Length 660mm
Weight  6.0kg
Package steel case
Size 755x130x230mm



Details

7T Manual Hydraulic Cable Cutter with Max 50m ACSR Conductor Cutting Capacity 0

7T Manual Hydraulic Cable Cutter with Max 50m ACSR Conductor Cutting Capacity 1
