Hot Dipped Galvanized Continous Tracing Duct Rodder Fiberglass Cable Conduit Rod

Hot Dipped Galvanized Continous Tracing Duct Rodder Fiberglass Cable Conduit Rod

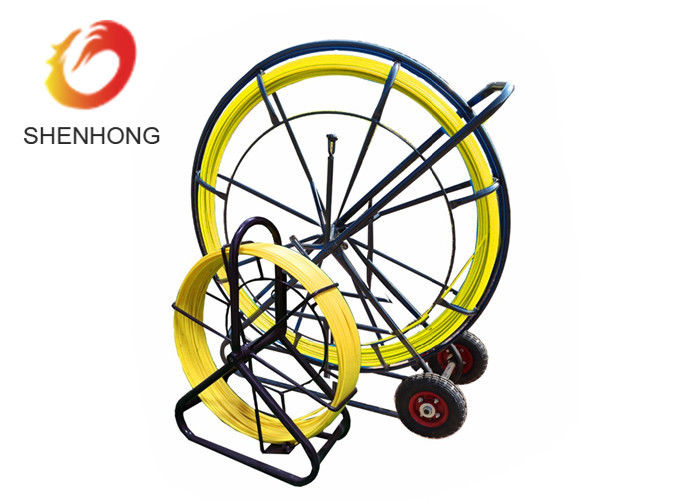

Hot Dipped Galvanized Continous Tracing Duct Rodder Fiberglass Cable Conduit Rod Hot Dipped Galvanized Continous Tracing Duct Rodder Fiberglass Cable Conduit Rod

Large Image :  Hot Dipped Galvanized Continous Tracing Duct Rodder Fiberglass Cable Conduit Rod Get Best Price

Product Details:
Place of Origin: MADE IN CHINA
Brand Name: SHENGHONG
Certification: ISO
Model Number: BCD
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Carton
Delivery Time: 10 workdays after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs/day
Detailed Product Description
Product Name: Continous Tracing Duct Rodder Type: Fiberglass Duct Rod
Diameter: 6mm-14mm Length: 50M-500M
Frame Material: Powder Coating Or Hot-dipped Galvanized Material: ABS Surface,Fiberglass,Copper
High Light:

cable installation tools

,

wire installation tools

Continous tracing duct rodder Cable push rod Fiberglass cable conduit rod



Fiberglass duct rod description:

Fiberglass duct rod, sometimes called python rod by its nature passing through under ground ducts by up and down negotiating the duct curvature, thus very convenient to pull the cables or wires inside the duct. what's more, it can be used to located the duct block or damage positions.
It has high safety aspects to be applied to underground applications because of its non-conductivity of
electricity, thus sets a major safety to site workers.
It has been built with rigid sturdy fiberglass tubular fabrication for easy usage at site and can be self coiled in
the tubular frame and easily roll like trolley on ground by its wheels fitted at bottom.
Hot Dipped Galvanized Continous Tracing Duct Rodder Fiberglass Cable Conduit Rod 0

Fiberglass duct rod features:
1>. Non-alkali fiberglass-durable working life time.
2>. ABS coating--smooth surface,non-conductivity
3>. Inside copper wire--detachable
4>. Tilting handle and rubble wheels--easy to carry and move

Fiberglass duct rod detailed pictures show:
Hot Dipped Galvanized Continous Tracing Duct Rodder Fiberglass Cable Conduit Rod 1


Sizes and Parameters

Fiberglass reinforced composite core
Rod inside core E-glassfiber(Content 75%-80%)
Rod outside finishing ABS coating with electrostatic spray painting
Density >1.9g/cm3
Working temperature -40℃ to +80℃
Minimum pulling strength 4000N±5%
Tensile moujulus >46.50Mpa
Consistency of rod 137g/m
Flexural modulus >46.50Mpa
Elongation at break 2.5-3%
Minmum bending radius 380mm
Polyethylene cover
Tensile strength >15N/mm2
Environmental stress & crack resistance >1000hr.
Heat stability ok
Carbon black ok
Sizes
Rod diameter 4mm; 4.5mm; 6mm; 8mm; 9mm; 10mm; 11mm;12mm;13mm;14mm;16mm
Rod length 50m; 60m; 100m; 120m; 150m; 200m; 250m; 300m; 350m
Frame size

No.1: 1.5*1.4*0.5m; No.2: 1.3*1.2*0.5m; No.3: 1.1*1*0.5m;
No.4: 0.95*0.9*0.5m; No.5: 0.8*0.7*0.2m; No.6: 0.7*0.6*0.2m;
No.7: 0.5*0.4*0.2m































Production line:
Hot Dipped Galvanized Continous Tracing Duct Rodder Fiberglass Cable Conduit Rod 2
Packaging and delivery:
Hot Dipped Galvanized Continous Tracing Duct Rodder Fiberglass Cable Conduit Rod 3
