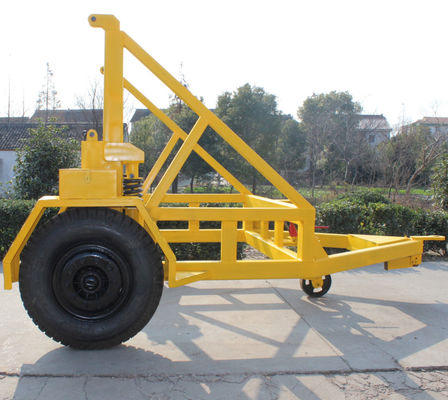

Cable Drum Trailer Jack 5Ton With Hand Brake and Air Brake for Cable Transportation

China Cable Drum Trailer Jack 5Ton With Hand Brake and Air Brake for Cable Transportation supplier
Cable Drum Trailer Jack 5Ton With Hand Brake and Air Brake for Cable Transportation supplier Cable Drum Trailer Jack 5Ton With Hand Brake and Air Brake for Cable Transportation supplier

Large Image :  Cable Drum Trailer Jack 5Ton With Hand Brake and Air Brake for Cable Transportation

Product Details:

Place of Origin: Jiangsu,China
Brand Name: Shenhong
Certification: ISO
Model Number: LZ

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: US $ 500~3000 / Set
Packaging Details: Export case
Delivery Time: 10 work days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 pieces per month
Contact Now
Detailed Product Description
Type: Cable Trailer Capacity: 5T
Weight: 900kg Application: Cable Transportation
Size: 4000*2700*2180mm

Capacity 5 Ton Cable Drum Trailer Underground Cable Tools With Hand Brake and Air Brake



Application

This product is used for cable drum hauling and cable pulling-pushing.The machine is equipped with automatic braking device, so it can brake effectiveiy by moving clutch.It is flexible steering,and can change angle at random. It is a necessary tool for electric construction because of its simple operation and easy maintenance.



Technical Data

Model Max Load Weight Max Lifting Height Inside Wide length Wide Hight
(T) (kg) mm mm (mm) (mm) (mm)
LZ-3T 3 600 1550 1400 3700 2200 1800
LZ -5T 5 900 1750 1650 4000 2700 2180
LZ -8T 8 1200 1900 1950 4200 3200 2300
LZ -10T 10 1500 2000 2000 4300 3400 2400
LZ -12T 12 2600 2000 2000 4300 3400 2400



We can make products with special specification as your requirements.

Cable Drum Trailer Jack 5Ton With Hand Brake and Air Brake for Cable Transportation
