Lift Speed: | Manual | Type: | Hoist Winch |
---|---|---|---|
Maximum Lifting: | 0.8T , 1.6T , 3.2T , 5.4T | Max. Lifting Height:: | 20M |
Power Source: | Lever, Hand | Warranty: | 1 Year |
Application: | Construction Hoist | Weight: | 6.4kg,12kg,28kg,56kg |
High Light: | electrical wire pulling tools,wire rope tensioner tool,Cable Pulling Tools 20m |

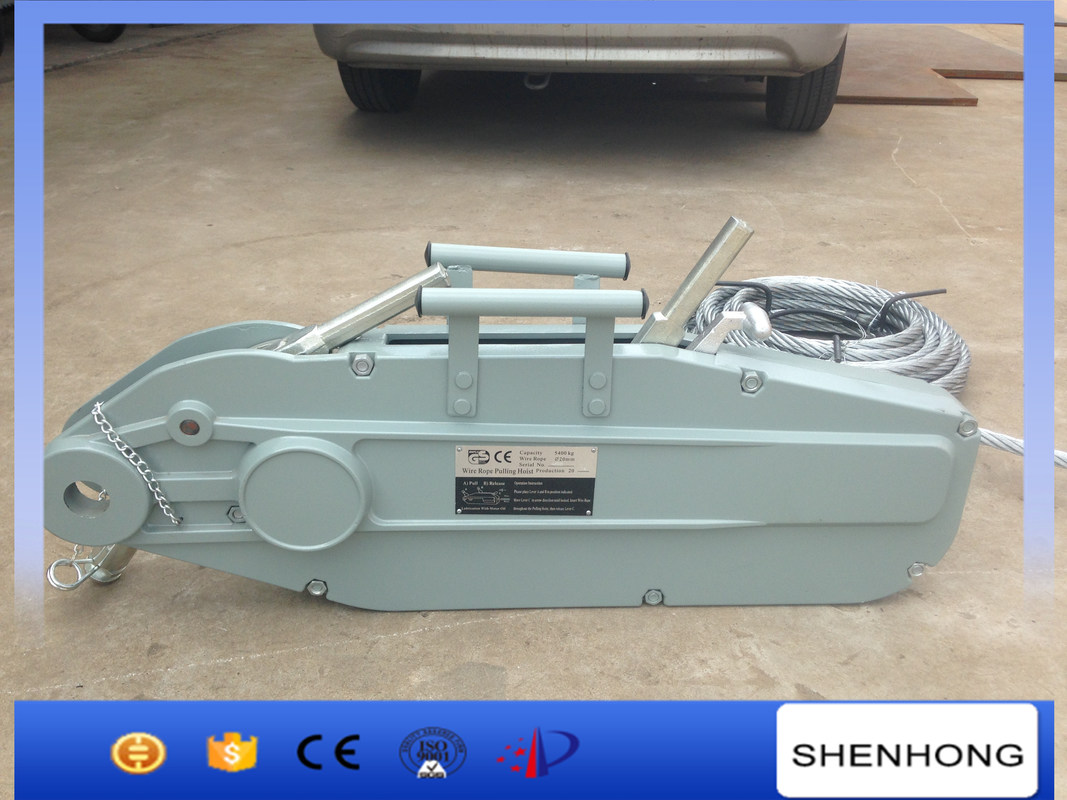

Tirfor include wire rope 20m Wire Rope Hoist Winch Tightening Tools
Technical Data
Model item | VIT-800 | VIT-1600 | VIT-3200 | VIT5400 |
Rated forward hand power(N) | 341 | 438 | 438 | 745 |
Rated capacity(KG) | 800 | 1600 | 3200 | 5400 |
Rated forward travel(MM) | ≥52 | ≥55 | ≥28 | ≥30 |
Rope diameter(MM) | 8.3 | 11 | 16 | 20 |
Wire rope safty factor load capacity(TIMES) | 5 | 5 | 5 | 5 |
Max travelling load(KG) | 1200 | 2400 | 4000 | 8000 |
Net weight(KG) | 6.4 | 12 | 28 | 56 |
Max outer size(MM) A | 426 | 545 | 660 | 930 |
B | 238 | 284 | 325 | 480 |
C | 64 | 97 | 116 | 152 |
L1(CM) | 80 | 80 | 68 | |
L2(CM) | 80 | 120 | 120 | 112 |
Packing (L*W*H)(CM) | 43*6.4*24 | 54.5*9.7*29 | 66*12*35 | 110*110*73 |
