Product Details:
Payment & Shipping Terms:
|
| Appplication: | Construction | Used: | Tensioning Wire |
|---|---|---|---|
| Maximun Current: | 100A | Weight: | 10-80kg |
| Warranty: | One Year | Material: | Aluminum Alloy |
| High Light: | wire pulling pulley,cable pulley block |
||

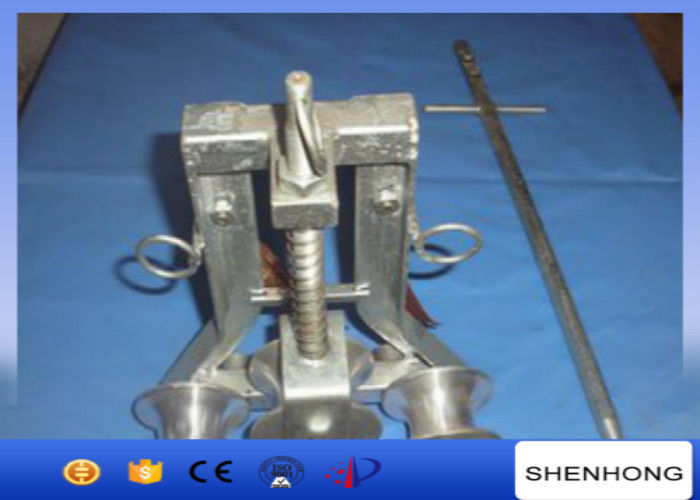

Grounding pulley block for tensioning erect wires, ACSR or earthwire
Application
It is used to eliminate induced static electricity in conductor or grounding wire spread when tensioning erect wires.
Notes:Grounding wire and grounding pile provide additionally.
Quality Control
We have the complete production equipments and professional production team to manage the whole process from production to packing shipment.All products will 100% test before delivery to ensure the quality.
Technical data of Grounding pulley block for tensioning erect wires, ACSR or earthwire
| Model | Root diameter of sheave | Applicable conductor | Maximun current(A) | Material of sheave | Weight(kg) |
| SJL-100 | Φ46 | ACSR720 and below | 100 | cast aluminum | 80 |
| SJT-100 | Φ50 | Earthwire | 100 | cast iron | 10 |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
